UP TO 2 NEW BIMBA STAINLESS AIR CYLINDERS 4" DOUBLE END 094-DXDE

UP TO 2 NEW BIMBA STAINLESS AIR CYLINDERS 4" DOUBLE END 094-DXDE

  • $ 3900


UP TO 2 NEW BIMBA STAINLESS AIR CYLINDERS 4" DOUBLE END 094-DXDE

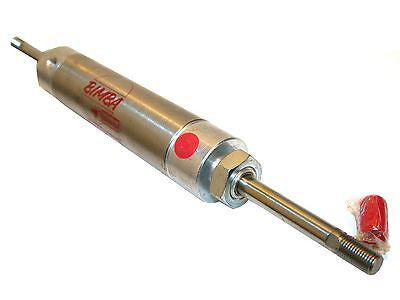

This is for up to 2 new Pneumatic Bimba Stainless Double End Air Cylinders, Part No. 094-DXDE with 4" inches of stroke, 13 inches overall length and 1 1/8" Diameter Housing - 1 1/16" Bore.

Each bid is for ONE Cylinder.

Mounting Both ends.
Shaft measures .311" diameter and is threaded on the ends.
304 stainless steel body with
mirror finish ID for long, reliable life.

• Pre-lubrication with HT-99, a
specially-formulated oil compound,
for extensive maintenance-free
performance.

• Piston-to-rod connection is
threaded, sealed and riveted
securely in place.

• Low breakaway frictional characteristics:
collapsible U-cup rod and piston
seals; oil-impregnated, sintered bronze rod
bushing; and breakaway slots on
each endcap for fast seal inflation
Roll-formed rod threads on
both ends for high strength.

• Blow-by flats on double
acting model pistons ensures
proper seal inflation.

• 250 psi rating.

• High strength aluminum alloy
porting ends, machined for
minimal breakaway during
initial pressurization
Force exerted is .9 times air pressure.
Bimba Manufacturing Company was founded in 1957 when Charles Bimba invented an inexpensive, non-repairable, stainless steel body air cylinder to replace small bore repairable cylinders. The product has since become an industry standard and Bimba remains the leading manufacturer of this type of cylinder.

For more Information see:

http://www.bimba.com/Global/Library/Catalogs/Bimba%20Catalogs/FL_OriginalLine.pdf#page=3

I will fully guarantee this new stainless cylinder.
Many more sizes available - see my other auctions. Shipping in the Continental US is $4.90 - I have very competitive rates for our always welcomed International bidders.
Thanks for looking! If you have any question on this item please call us at 1-800-826-3433 (9 - 5pm Eastern).
Pay me securely with your Visa or MasterCard through PayPal!
