UP TO 2 NEW PARKER 1 1/2" BORE 5" ROD LOCK AIR CYLINDER 40CBCMPRLU14MC 127.00

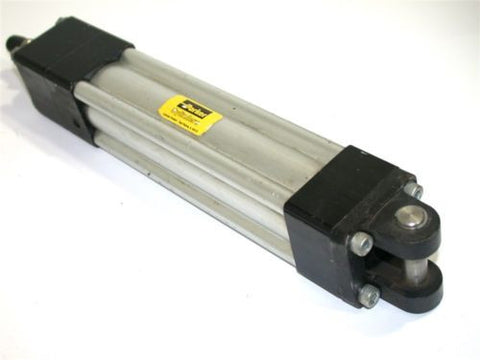

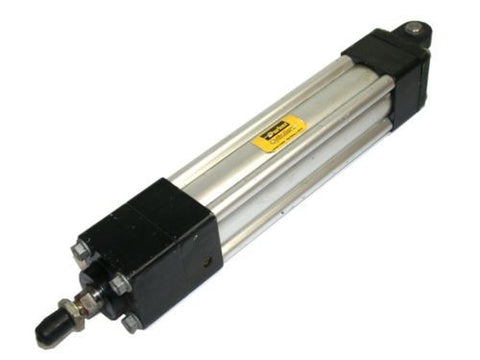

This is an Auction for up to 2 new Parker Back Clevis Mount Rod locking Pneumatic Cylinders, Part# 40CBCMPRLU14MC 127.00.Each Bid is for ONE Cylinder.
This Series incorporates a powerful piston – rod locking device, which clamps the piston rod and locks it in position. The locking device is of the air/spring activated type and is integrated into the front (head) cover of the cylinder. In the absence of air signal pressure, full holding force is applied to the piston rod. When air is present, 4 bar (60psi), the locking device is released.
This heavy-duty cylinder has a 1 1/2 Inch (40mm) Bore and 5" (127MM) Inches of stroke with a 16MM Diameter piston - envelop pressure - 10 Bar.
Rugged square steel heads and caps resist shock and provide maximum strength within minimum space. Factory-treated to resist corrosion.
Piston rod lipseal/wiper combination is completely self-compensating for zero leakage at all pressures. Keeps pressure in, contamination out.
High strength piston rod end stud (125,000 psi minimum yield steel) with rolled threads for 52% greater strength at this critical fatigue point. Choice of male or female thread at no extra cost. Anaerobic adhesive is used to permanently lock the stud to the rod.
Bolt-on, high strength, rod gland removes screwdriver-easy on all mounting styles and bore sizes for fast, on-the-job rod seal replacement if needed.
Tie rods are 100,000 psi minimum yield steel with rolled threads for added strength. High strength nuts provide extra margin of safety.
Chrome Plated Steel Tubing honed to a 15 micro inch finish.
Rod Gland Threaded bronze gland is externally removable, without cylinder disassembly, for easy maintenance.
Parker, the pioneer in the design and development of the aluminum NFPA cylinder, continues its innovation leadership with the this Series Non-Lube Air Cylinder.
For more information see:
I will fully guarantee this new expensive cylinder.
Many more sizes available - see my other auctions.
Shipping in the Continental US is $9.90 - I have very competitive rates for International bidders that are always welcome
Thanks for looking! If you have any question on this item please call us at 1-800-826-3433 (9 - 5pm Eastern).
