UP TO 4 MINARIK VARIABLE 115V DC MOTOR 1/20 - 1/8 HP SPEED CONTROL MMRG31U
You are bidding on up to 4 Minarik Variable Speed DC Drive Motor with potentiometer, Model MMRG31U.Each bid is for ONE Control.

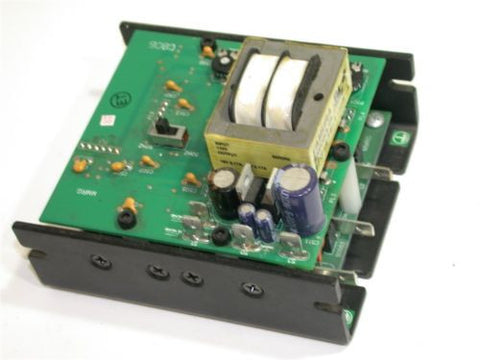

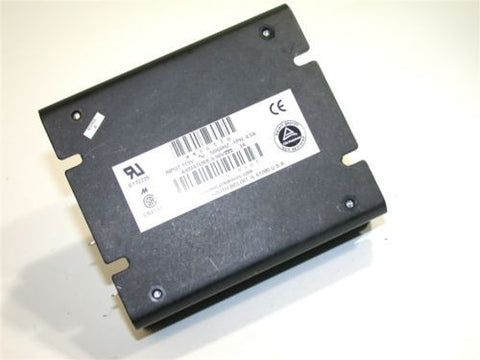

The MMRG31U is one of the smallest full-wave four-quadrant drives on the maket today. This full-featured, compact drive matches brush-type DC motors.The MMRG31U provides all the performance of a full size, four quadrant, regenerative variable speed drive and has our popular MM footprint (3.72 X 4.42). This drive will maintain motor speed with smooth motoring and braking torque and allow high-duty cycle reversing and braking. It has an adjustable current limit, 1% of base speed regulation and can regulate within a 50:1 speed range (open loop).
? MM footprint: An extremely compact size in an industry standard mounting footprint.
? 4Q Reversing: Regenerative/4 Quadrant drives have the ability to perform quick, contactorless reversing on-the-fly!
? Speed range and regulation: 1% regulation over 50:1 speed range.
? User adjustable calibration pots: IR compensation, max speed, forward current limit, reverse current limit and forward and reverse acceleration.
? Stopping Modes: User can decelerate (N.O.),regeneratively brake (N.O.) or coast to a stop (N.C.).
? Spade terminals: Easy to use, lower cost and able to fit in smaller package.

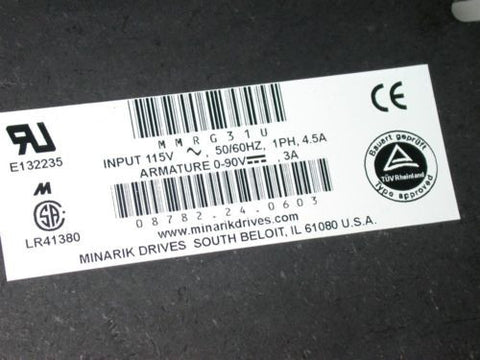

Input Voltage: 115V
Output Voltage: 90V
Horsepower: 0.125 hp
Enclosure: Open Chassis
Output Current: 5.00A
1/20 - 1/8 Horse Power rating
For more Information see:https://www.minarikdrives.com/p-17413-mmrg31u.aspx
I will fully guarantee this control.
Shipping in the Continental US is $5.90 - I have very competitive rates for our always welcomed International bidders.
Thanks for looking! If you have any question on this item please call us at 1-800-826-3433 (9 - 5pm Eastern).
Pay me securely with your Visa or MasterCard through PayPal!
