UP TO 4 SMC AIR CYLINDER WITH VACUUM ZCDUKC20-50D-F9NL

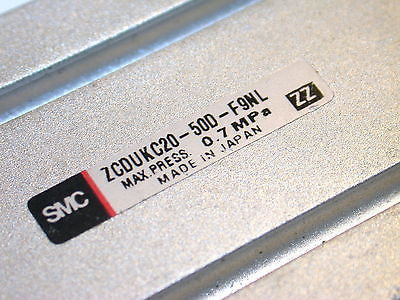

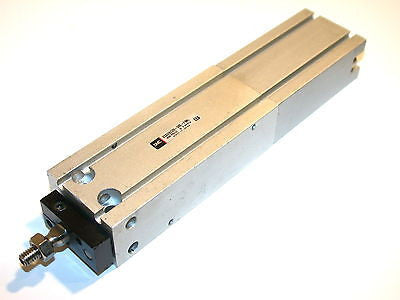

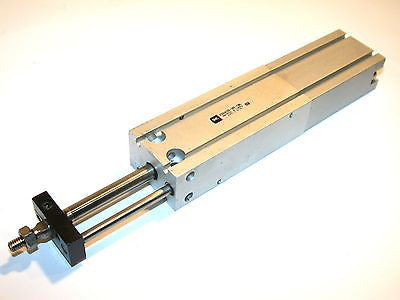

This is an Auction for up to 4 Pneumatic Double Acting SMC Non-rotating Air Cylinders with Built-in magnet, Model # ZCDUKC20-50D-F9NL with 2" (50MM) of stroke and 20MM Bore.
Each Bid is for ONE Unit.
The ZCUK series is a non-rotating free mount cylinder for vacuum applications. The ZCUK was created by providing a vacuum passage in the rod of the CUK cylinder to enable a vacuum pad to be installed on the end of the rod. A guide is provided as standard equipment. Vacuum pads are available with pad diameters of ø2 to ø50. Cap or rod piping is available to the rod side.

A vacuum passage has been provided in the rod of this cylinder to enable a
vacuum pad to be installed on the end of the rod.

Features

Non-rotating rod accuracy - ±0.8°

Proof pressure -1.05 MPa

Maximum operating pressure - 0.7 MPa

Vacuum port pressure -101 kPa to 0.6 MPa
This unit is ideal for pick and place requirements.
Cylinder measures 1" High x 1.6" wide x 7" Long.
For more Information see:

http://www.coastpneumatics.com/metric/vacuum/zcuk_series_vacuum_cylinders.pdf
I will fully guarantee this great unit.
Many more sizes available - see my other auctions.
Shipping in the Continental US is $5.90 - I have very competitive rates for our always welcomed International bidders.
Thanks for looking! If you have any question on this item please call us at 1-800-826-3433 (9 - 5pm Eastern).
Pay me securely with your Visa or MasterCard through PayPal!
