VERY NICE OMEGA PRESSURE TRANSMITTER MODEL PX305-200GI

  • $ 24900

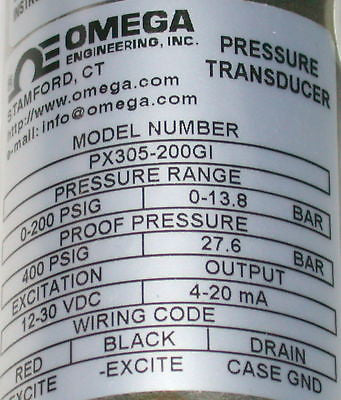

VERY NICE OMEGA PRESSURE TRANSMITTER MODEL PX305-200GI



You are bidding on a VERY NICE OMEGA PRESSURE TRANSMITTER MODEL PX305-200GI.



This is a very nice transmitter in like new condition and it is fully guaranteed.


Excitation: 12 to 30 Vdc unregulated



Output: 4 to 20 mA (2-wire reverse polarity protected)


Max Loop Resistance: (Vpower - Vmin) x 50 (1500 Ω max)


Accuracy: ±0.25% FS (linearity, hysteresis, repeatability); vacuum

ranges ±0.35% typ, ±0.5% max


Zero Balance: 4 mA ±2%



Span: 16 mA ±1% FS


Long-Term Stability: ±0.5% FS

Operating Temperature: -18 to 71°C (0 to 160°F)


Compensated Temperature: -1 to 71°C (30 to 160°F)


Total Thermal Effects: 1% FS max over compensated range


Proof Pressure: 200% or 13,000 psi max, whichever is less



Gage Type: Stainless steel diaphragm, silicone oil-filled semiconductor sensor

Shock: 50 g @ 11 ms



Vibration: 15 g, 10 to 2000 Hz


Wetted Parts: 17-4 PH and 300 Series stainless steel



Pressure Port: 1.4 NPT male

Electrical Connection:

PX305: 1 m (3') 4-conductor, 22 AWG, PVC jacketed, shielded cable

For more information:
http://www.omega.com/Pressure/pdf/PX305.pdf
