WILKERSON ISOLATED DC TRANSMITTER MODEL DM4300A
Wilkerson · See all

WILKERSON ISOLATED DC TRANSMITTER MODEL DM4300A

$ 79.00 In stock · Only 1 left
  • Ships in 1 business day from Rochester, NY
  • Express shipping at checkout
  • 30-day returns policy
  • Secure checkout cards, PayPal & more
Questions about this part? (585) 454-4987

About this item

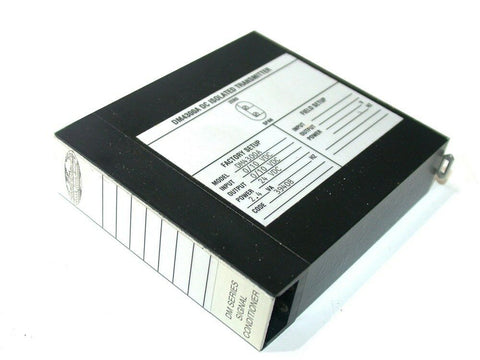

The DM4300A provides an isolated output voltage or current proportional to an input voltage or current. The input and output ranges are fixed at 0/10Vdc or 4/20mAdc. It is useful for converting voltages to current, currents to voltage.

The output is fully isolated from input, line power, and ground. The unit is useful for eliminating ground loops and for isolating from common mode voltages. The DM4300A utilizes a feed- back voltage controlled oscillator to develop a digital signal with a duty cycle proportional to the input signal ampli- tude. This signal is coupled through an isolating pulse transformer to the output circuitry, where the duty cycle data is converted to a proportional output signal level.

The module includes filtering and conditioning to reduce susceptibility to transients and noisy environments.

For more Information see:

https://www.wici.com/technical/manuals/wici_pdf/io_pdf_files/DM4300A_IO_Manual.pdf
